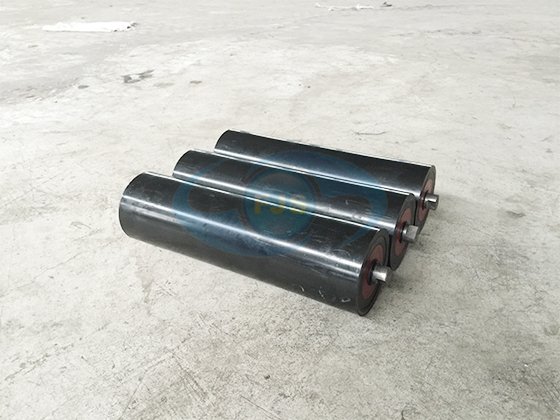

Belt Conveyor Roller

High strength, abrasion resistance and stability ultrahigh molecular weight polyethylene(UHMW-PE) roller tube. Optimally designed waterproof and dustproof bearing house and sealing system with patent, Adopt high precision C3/Z2 bearing(LYC,HRB,ZWZ,SKF,NSK), cold drawn round steel shaft(Q235).

  • FJS conveyor roller (Φ63.5-219mm)
  • conveyor roller
  • FJS

◆ High strength, abrasion resistance and stability ultrahigh molecular weight polyethylene(UHMW-PE) roller tube.


◆ Optimally designed waterproof and dustproof bearing house and sealing system with patent, Adopt high precision C3/Z2 bearing(LYC,HRB,ZWZ,SKF,NSK), cold drawn round steel shaft(Q235).


◆ Our rollers are manufactured with high quality components and are designed for high speed, high load capacity, reliability and extreme long life, ensure optimum reliability, long term performance and stability.







1、Abrasion resistance and long life



roller shell is made from UHMW-PE, abrasion resistance 10 times that of HDPE and 7 times that of steel. UHMWPE roller has been subjected to continuous abrasion in very extreme quarrying, coastal and industrial applications.







2、Impact resistance and Impact energy absorbing


UHMWPE has the highest impact strength of any engineering plastics, about 3 times that of     nylon,2 times that of PC, 5 times that of ABS, withstands repeated impaction, even at -196 it is tough, together with its superior abrasion and corrosion resistance. UHMW-PE roller has made itself ideally suited for industrial applications in complicate and rough environments,can keep long,stable life in high impact loading areas.





3、Effective sealing system

The primary contact labyrinth seal prevents almost all the dust to get into the bearing house, and no water could leak in(As tested).Combining with advantages of many kinds of plastic to make the whole sealing system cooperate to best. bearing house are made of nylon which has a very low surface energy and are anti-adhesion, so it is repulsive to dust and water. It is quite difficulty for dust,water and oil to get through the narrow channel






4、Noise reduction

UHMW-PE is a much better noise debase material than HDPE, cooperate with better performance sealing system, UHMWPE rollers generate much less noise than conventional steel roller, they are environmentally friendly








5、No sticking

UHMWPE could not be sticked by any material, so no conveyor material will be sticked to roller surface.









6、Reduced belt damage

UHMW-PE shell is self-lubrication, and prevent the adhesion of any bulk material, so no damage was caused to conveyor belt, even in case of roller be stopped.









7、Extremely low Total Indicated Runout(T.I.R.)

Machined face of shell yield excellent balance and Extremely low Total Indicated Runout(T.I.R.).stable operation.









8、Corrosion resistance

UHMWPE roller can withstand humidity, corrosive chemicals, acids, salt and alkalis.










9.Wide range of applications

normally operating in -60 ℃ -80 ℃ temperature environment.










10.Extremely long life and superior reliability

Optimal designed sealing system and UHMW-PE material roller pipe do not oil impregnate protect grease from leakage and bearing from being damaged to result in long service life and reliability.








11.easy installation,easy maintenance

Low maintenance fee Light weight make it easy to fit and install. easy,visual maintenance solutionAnd no need greasing for roller again.









12、Light weight , and energy saving

UHMWPE rollers are only one third less in weight than steel roller, they are even lighter than HDPE roller, since they have superior strength .Light weight and low friction result in considerable energy saving.







Roller DiameterΦ65/Φ76/Φ89/Φ102/Φ108/Φ114/Φ127/Φ133/Φ140/Φ152/Φ159/Φ168/Φ178/Φ194/Φ219 and customized
Roller Length150-3500mm
Bearing

Model:6204,6205,6206,6304,6305,6305,6307,6308

Brand:SKF NSK FAG C&U ZWE NWH HRB LYC or customized

ColorBlack,White,Blue,Red,Yellow,Green,Orange,etc
MaterialUHMW-PE roller,Nylon roller, HDPE roller,Rubber roller,Polyurethane roller,EPDM Roller,PP roller,PVC roller,etc
PropertiesLight weight,much longer life than traditional roller, high wear resistance, Anti-Acidic and Alkaline corrosion


Trough rollerCarrying rollerCarrier rollerReturn roller
Impact rollerGuide rollerFriction self-aligning rollerRubber disc cleaning idler
Comb rollerPipe rollerGarlandSuspend idler
Return flat idlerFront idlersRear rollerFlat belt roller
UHMW-PE rollerRubber rollerPP rollerPVC roller
Nylon conveyor rollerSteel rollerLow noise conveyor rollerUnderground coal mining conveyor roller
All-plastic rollerHigh temperature-resistant conveyor roller
